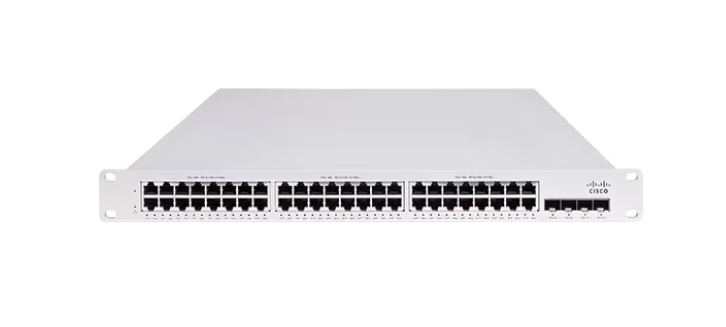

MS150

Future-proof your networks with stackable access switches for Wi-Fi 7 and IoT deployments

Details that matter

• Power Wi-Fi 7 and IoT deployments with up to 740W power budget
• Diverse PoE offerings (30W PoE+ and 60W PoE++)
• Stack up to eight MS150 switches with two dedicated stacking ports
• High-speed options including 5 GbE mGig and 10 GbE SFP+
• Shallow-depth options for ergonomic deployments

Enterprise-class hardware Meraki switches feature high-end hardware and an exceptional feature set, including:

 • Options for fixed and modular uplinks: 1 GbE, 10 GbE, and 40 GbE uplink ports for high-speed connectivity to aggregation layer switches or other upstream devices • Optional multigigabit ports providing up to 10 Gbps on a single cable, supporting the latest Wi-Fi performance capabilities • Wire-speed, non-blocking switch fabric (up to 800 Gbps) and six dedicated QoS queues for high-performance, converged voice, video, and data deployments • Power-efficient, quiet acoustic designs and shallow rack-depth options enable flexible deployment in wiring closets as well as offices and classrooms • Fanless design on select models • PoE, PoE+, and UPOE options available • Lifetime hardware warranty and advanced replacement at no additional cost • Field-replaceable, hot-swappable power supplies and fans; redundant power supply (RPS) options for mission-critical applications; StackPower on select models for added resilience

Powerful feature set for deployments of all types Meraki switches include all of the traditional Ethernet features found on the highest-end products, including:

• QoS to prioritize mission-critical traffic such as voice and video  • IEEE 802.1x support for port-based network access control  • MAC-based RADIUS authentication and MAC allowlisting • Voice VLAN support for simplified voice over internet protocol (VoIP) deployments  • Port mirroring support for monitoring network traffic at line rate  • Dynamic Host Configuration Protocol (DHCP) snooping to prevent users from adding unauthorized DHCP servers on the network  • Internet Group Management Protocol (IGMP) snooping to optimize network performance with multicast traffic  • Link Aggregation Control Protocol (LACP) for high-capacity trunking, stacking, and increased availability  • Rapid Spanning Tree Protocol (RSTP), Bridge Protocol Data Unit (BDPU) guard, root guard, and other safeguards to help prevent misconfigurations and reduce convergence time  • Per-port VLAN configuration  • Multiple administrative roles with sophisticated security policy management  • High-performance layer 3 routing capabilities on select models

• MS150-24MP-4X: 16 x 1 GbE + 8 x 5 GbE, 4 SFP+, PoE++ (370W)
• MS150-48MP-4X: 32 x 1 GbE + 16 x 5 GbE, 4 SFP+, PoE++ (740W)

• MS150-24P-4X: 24 x 1 GbE, 4 SFP+, PoE+ (370W)
• MS150-48LP-4X: 48 x 1 GbE, 4 SFP+, PoE+ (370W)
• MS150-48FP-4X: 48 x 1 GbE, 4 SFP+, PoE+ (740W)
• MS150-24P-4G: 24 x 1 GbE, 4 SFP, PoE+ (370W)
• MS150-48LP-4G: 48 x 1 GbE, 4 SFP, PoE+ (370W)
• MS150-48FP-4G: 48 x 1 GbE, 4 SFP, PoE+ (740W)

• MS150-24T-4X: 24 x 1 GbE, 4 SFP+, data only
• MS150-48T-4X: 48 x 1 GbE, 4 SFP+, data only
• MS150-24T-4G: 24 x 1 GbE, 4 SFP, data only
• MS150-48T-4G: 48 x 1 GbE, 4 SFP, data only

• Zero-touch provisioning
• Network-wide visibility and control
• Seamless firmware updates
• Remote troubleshooting tools

• Built for Wi-Fi 7 and next-gen IoT
• Shallow-depth options available
• Non-blocking switch fabric; low noise, fanless model available
• 99.9% cloud SLA with 24/7 support
