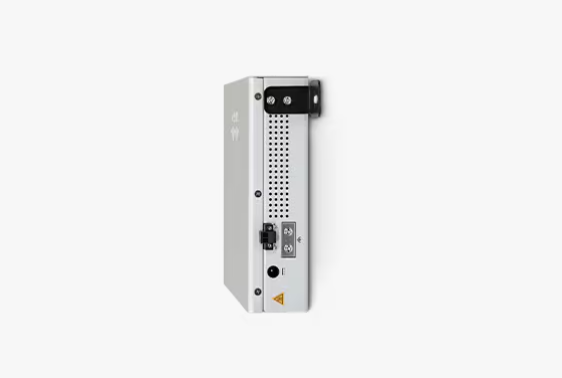

MS130R

Extend reliable connectivity and PoE wherever you need it

Details that matter

• Power more use cases with up to 240 W PoE+ and IP30 protection
• Extended operating temperature from -40 °C to 70 °C (or -40 °F to 158 °F)
• Flexible mounting and power options for different deployment needs
• Manage all your environments in one powerful Meraki cloud-managed dashboard

• MS130R is hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license

Game-changing features

Built for harsh environments

• Protective ground connection design
• Flexible powering options: terminal block and DC power jack
• 8x 1 G ports and 2x 1 G SFP uplink
• Flexbile mounting options: rack, wall, and DIN rail mounting options

Cloud-managed

• Remote packet capture tools via the Meraki dashboard
• IPv4/6 ACL support
• Review, schedule, and update firmware for all your switches in one location
• Flexibility and ecosystem extensibility with Meraki API and ecosystems

Power/PoE

• Monitor and plan PoE usage from anywhere
• Power PoE devices with up to 30 W per port
• Diversify power supply options with an external AC adapter or DIN rail AC power supply

Enterprise hardware andsupport

• Layer 7 visibility and built-in application layer visbility
• Rich telemetry source and endpoint modeling
• Visualize the connection path of each endpoint to the internet
• Voice and video QoS
• Non-blocking switch fabric

Switching capabilities

• IPv4/6 ACL support
• SNMP/syslog integration
• Layer 2
• DHCP relay
• DHCP snooping

Accessories

• PWR-IE240W-PCAC-L
• PWR-IE480W-PCAC-L
• GLC-SX-MM-RGD
• GLC-LX-SM-RGD
• GLC-ZX-SM-RGD
• GLC-T-RGD
